Filament Voltage And Current Graph. This means that the resistance is not high and the current can flow easily. There is no fixed constant of proportionality between voltage and current, so the concept of resistance does not apply.

Consider The Xray Tube Rating Charts Shown Below from www.chegg.com

When you plot a graph of voltage against current, you can end up with a straight line or a curved line.if you have a straight line, then it. From the i/v graph, the ratio v/i increases as current increases. At higher voltages, a larger current is driven through the lamp filament wire and the wire gets heated up due to.

Source: www.markedbyteachers.com

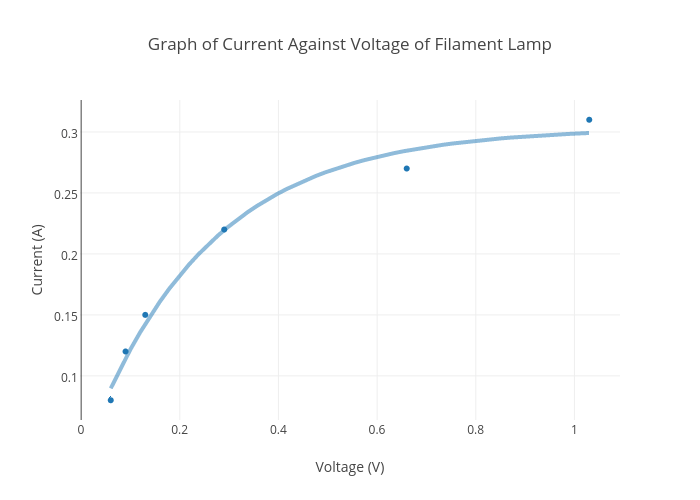

In other words there is not a linear relationship between the voltage and current and a graph of the current and voltage would not be a straight line. I have since made a graph of current against voltage (current on y axis and voltage on x axis) which looks like this:.

Source: imajeenyus.com

The resulting amperes/watt ratio is projected horizontally to the appropriate curve. At higher voltages, a larger current is driven through the lamp filament wire and the wire gets heated up due to.

Source: physics.stackexchange.com

The curve begins very slightly at first and then gradually becomes steeper; Select the hardware setup icon in the displays column.

Source: electricalacademia.com

Although the graph you drew was voltage versus current, it is similar to this which shows current versus voltage. Select the hardware setup icon in the displays column.

Source: physics.stackexchange.com

Connect the interface output across the 100 resistor on the rlc circuit board. Practical lesson for finding potential difference current graph for a filament lamp.

Source: plotly.com

For a filament lamp, current and voltage are not directly proportional. Divide the average anode current in amperes by the product of filament voltage and current.

Source: www.slideserve.com

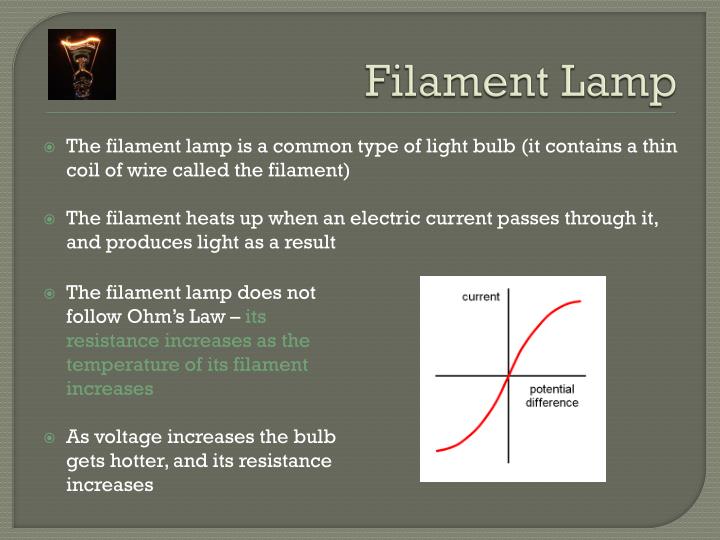

As the potential difference across a filament lamp increases, the current increases and the energy dissipated, as heat, increases, resulting in a higher temperature. Click on the output terminals of the interface.

Source: www.onthegowithzeppi.com

Divide the average anode current in amperes by the product of filament voltage and current. Select the hardware setup icon in the displays column.

The Current Flowing Through A Filament Lamp Is Not Directly Proportional To The Voltage.

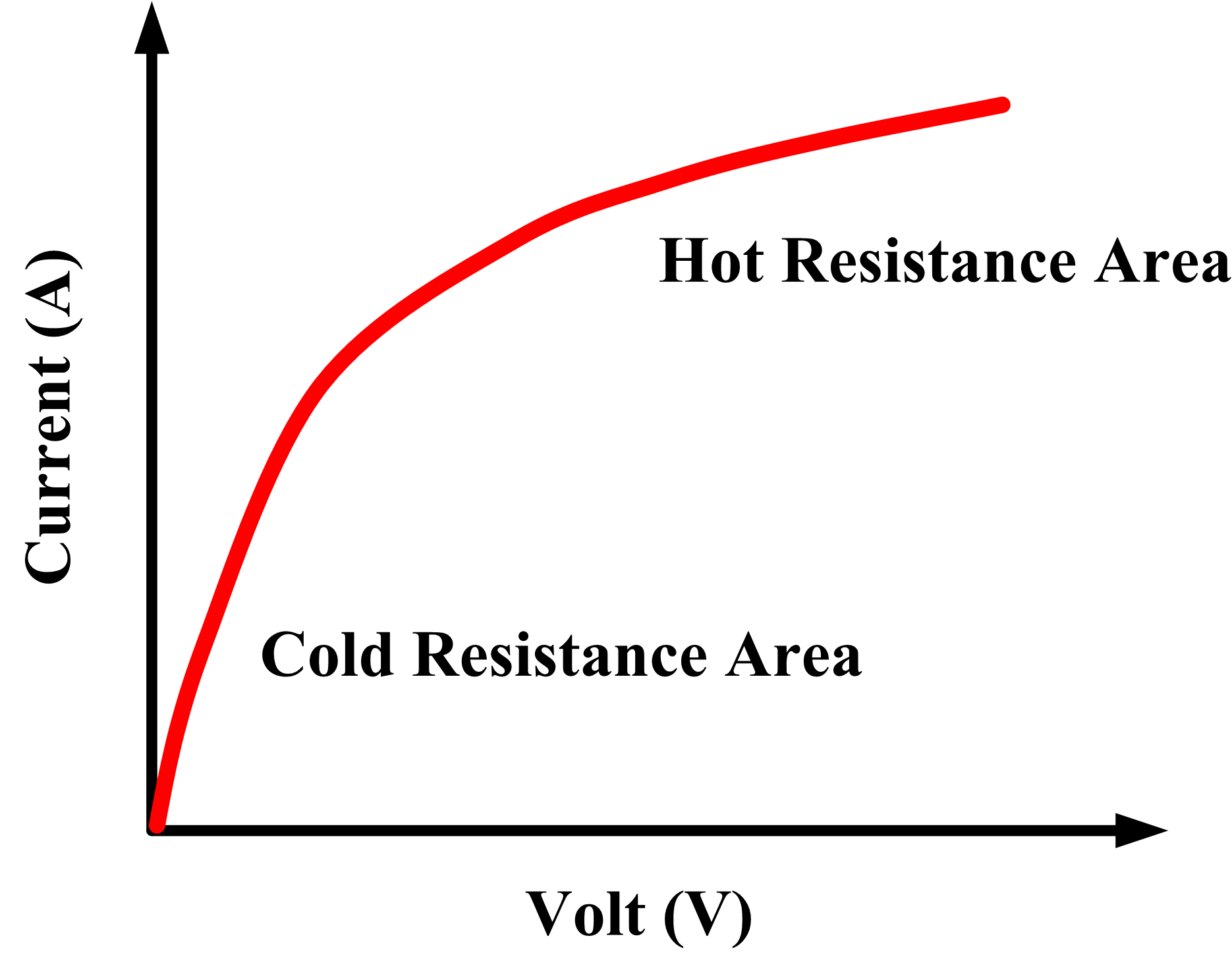

In ranges where the voltage is not too strong, the current is not very strong and the temperature is not very high. The probability of extended life service can be determined from this graph. As the potential difference across a filament lamp increases, the current increases and the energy dissipated, as heat, increases, resulting in a higher temperature.

At Higher Voltages, A Larger Current Is Driven Through The Lamp Filament Wire And The Wire Gets Heated Up Due To.

Connect the interface output across the 100 resistor on the rlc circuit board. For a filament lamp, however, the temperature of the filament is most definitely not constant (it must to get hot in order to give out light!) the resistance of a lamp's filament (the long, thin, coiled wire) increases dramatically as the current increases. Divide the average anode current in amperes by the product of filament voltage and current.

Click On The Tack To Resize The Windows.

For a filament lamp, current and voltage are not directly proportional. The iv graph for a filament lamp shows the current increasing at a proportionally slower rate than the potential difference; I have since made a graph of current against voltage (current on y axis and voltage on x axis) which looks like this:.

Similar To The One Of X2.

There is no fixed constant of proportionality between voltage and current, so the concept of resistance does not apply. When you plot a graph of voltage against current, you can end up with a straight line or a curved line.if you have a straight line, then it. Practical lesson for finding potential difference current graph for a filament lamp.

This Results In The Following Graph:

The curve begins very slightly at first and then gradually becomes steeper; The current can be recorded for each of the voltages and a graph of current against voltage plotted. Click on the output terminals of the interface.
