Voltage Across Inductor And Capacitor At Resonance. In series rlc circuit, the total voltage is the phasor sum of voltage across resistor, inductor and capacitor. Finally the voltage across the resistor is vr = i@td r (3)

☑ How To Calculate Ac Voltage Drop Across A Capacitor from anteo-perez.blogspot.com

The current through the inductor lags in phase behind the voltage across it by π/2 rad. From the voltage divider equation you know that the voltage across the inductor is $$v_l(\omega) = \tilde{v}_s(\omega) \frac{z_l(\omega)}{z_l(\omega) + z_c(\omega)}$$ where $z_l$ is the impedance of the inductor and $z_c$ is the impedance of the capacitor. Rlc series circuit, phasor diagram with solved problem.

Source: ifungeek.blogspot.com

0rc v s r = jq v s this voltage multiplication property is the key feature of the circuit that allows it to be used as an impedance transformer. The frequency at which the resonance occurs is called resonant frequency.

Source: anindiyayaya.blogspot.com

Series resonance circuits are useful for constructing highly frequency selective filters. This means current will ramp up to infinite amps unless current is limited.

Source: osdeliriosdeconsumo13.blogspot.com

This means current will ramp up to infinite amps unless current is limited. What is the voltage across the capacitor?

Source: myblogthesims2.blogspot.com

Rlc series circuit, phasor diagram with solved problem. It’s important to distinguish this q factor from the intrinsic q of the inductor.

Source: angeljiemala.blogspot.com

So, the magnitude of voltage across inductor at resonance will be $$|v_l| = qv$$ where q is the quality factor and its value is equal to $\frac{x_l}{r}$ voltage across capacitor. Inductor and capacitor in parallel resonance.

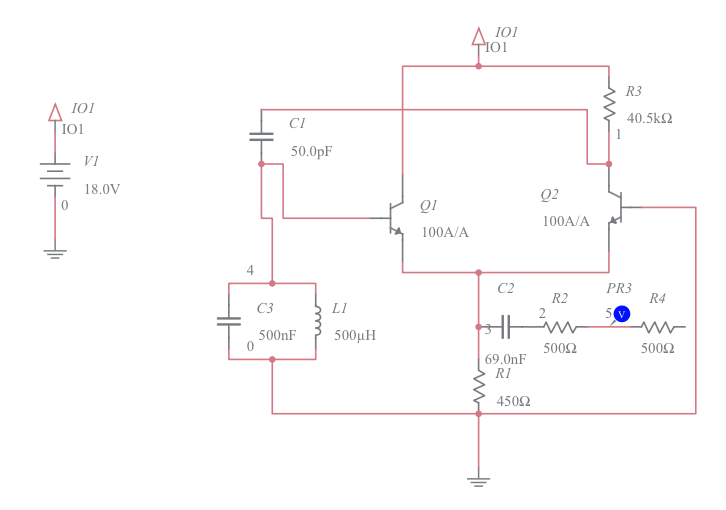

Source: www.multisim.com

Inductor and capacitor in parallel resonance. Phasor diagram for voltage given below:

Source: ifungeek.blogspot.com

If voltage is constant across an inductor, then \$\dfrac{di}{dt}\$ is constant. The high value of current at resonance produces very high values of voltage across the inductor and capacitor.

Source: www.researchgate.net

Current through it, is limited by the capacitive reactance xc = 1 / ( ω c ). Hence, at resonance in an rlc, the net voltage drop takes place across the resistor.

The Reason For This Phenomenon Is Called Resonance, In This Case Between The Capacitor And The Inductor.

0c i = 1 j! Therefore, the voltage across inductor at resonance is $v_l = j qv$. Hence, at resonance in an rlc, the net voltage drop takes place across the resistor.

V L = Voltage Across The Inductor.

At resonant frequency, the voltage across capacitor is equal to the voltage across inductor. 262 2 11 2 1 10 10 50µjoules c 22 ec==v×− ×= for capacitor c3: V l = v c.

Across The Capacitor (The Reactances Are Equal At Resonance After All) V C = 1 J!

Finally the voltage across the resistor is vr = i@td r (3) However, its high current and very high component voltage values can cause damage to the circuit. This means current will ramp up to infinite amps unless current is limited.

Now, Since The Voltage Drops Across The Inductor And Capacitor Are Equal And Since Both Of Them Have A Phase Difference Of 180 Degrees, The Resistor Is The Only Avenue For Voltage Drop To Take Place.

Current through it, is limited by the capacitive reactance xc = 1 / ( ω c ). As there is only one path for current in a series combination, the current in all these components is the same in magnitude and phase. They cancel each other out so that the voltage drop across rlc circuit is due to just the voltage drop across the resistor alone.

Phasor Diagram For Voltage Given Below:

The voltage across the resistor is the same value as the applied voltage. In series rlc circuit, the voltage across capacitor and inductor are 180⁰ out of phase with each other. In the case of resonance, the voltage across inductor and capacitor are equal.
